SDJ-B large double-chip four-servo semi-automatic nail box machine

  • Products SDJ-B large double-chip four-servo semi-automatic nail box machine
SDJ-B large double-chip four-servo semi-automatic nail box machine

SDJ-B large double-chip four-servo semi-automatic nail box machine

Siemens four-servo drive from Germany, with accurate precision and reduced mechanical transmission parts, which can effectively reduce the failure rate of machinery.

  • The entire control system adopts Omron PLC control system.
  • The contactors in the control box all adopt the German Siemens brand.
  • Relays and circuit breakers adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.
  • The bottom mold and the blade are made of Japanese tungsten steel (wear-resistant).
  • The whole set of nail heads are all made of special steel and precision processed by computer numerical control.
  • Can be nailed with lid box & without lid carton (if the box with or without lid needs to be nailed, please specify when ordering the machine).
  • There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (2-99), which is convenient for packing and binding.
  • Mechanical speed: 600 nails/min.
  • One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.
  • Reinforced nails can be nailed, single nails, double-row nails, one-time completion
  • The paper feeding part automatically counts, and the finished product is sent out and bundled.
  • Suitable for small and medium-sized cartons, fast and labor-saving.
  • Adjust the nail distance, use the computer to set the nail distance automatically, the nail distance can be adjusted arbitrarily from 30 to 120mm;
  • Automatic wire feeding system, 20KG large flat wire, saving time.
  • Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer-controlled, fast and accurate.
  • This machine adopts four servo motors (namely, two head motors and two feeding motors).
  • The protection device of the whole machine electrical isolation voltage stabilizer transformer can better protect the service life of the whole machine computer electrical appliances.
  • The whole machine adopts the latest computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, which is fast and accurate, and can store orders.
  • The four-servo nail box machine of this machine has applied for a national patent, the patent number is: 201320093086.8;
  • This machine uses a computer screen to display fault descriptions.

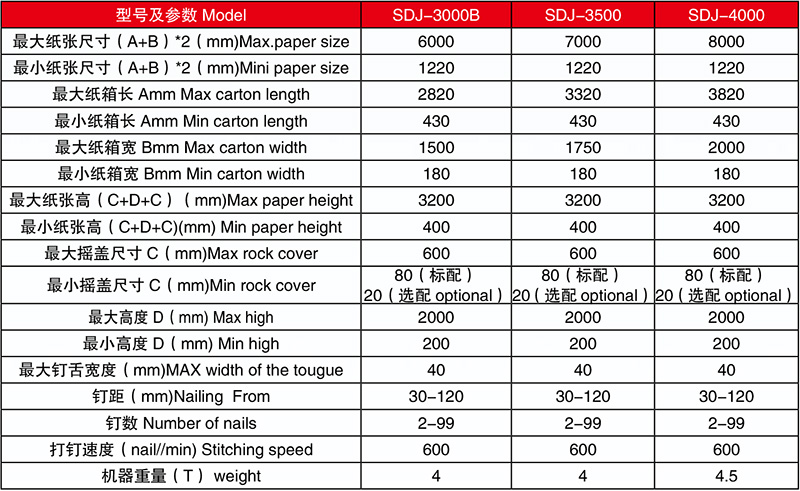

Machine specifications
